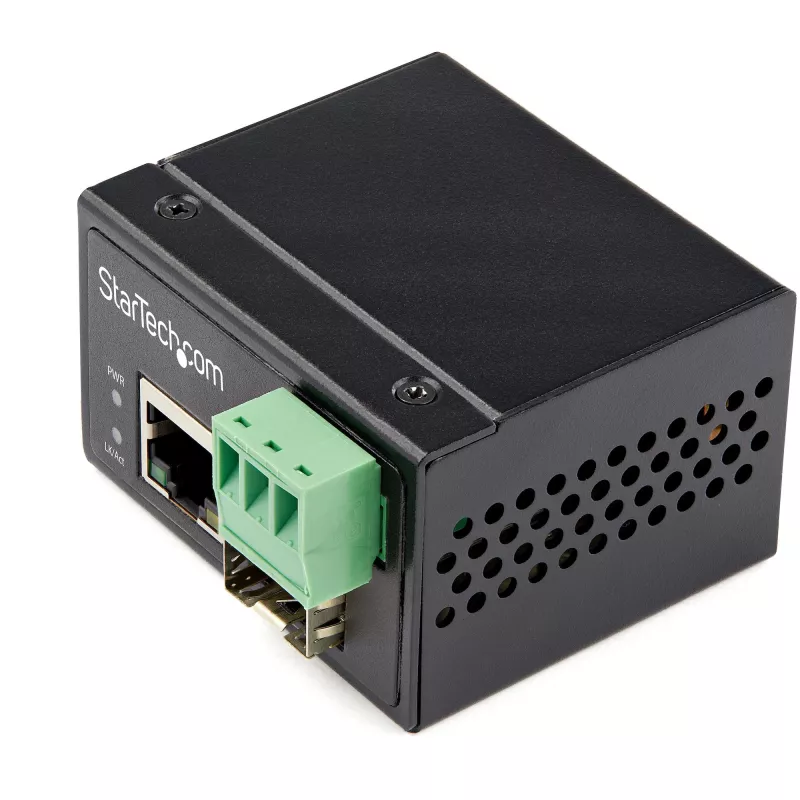

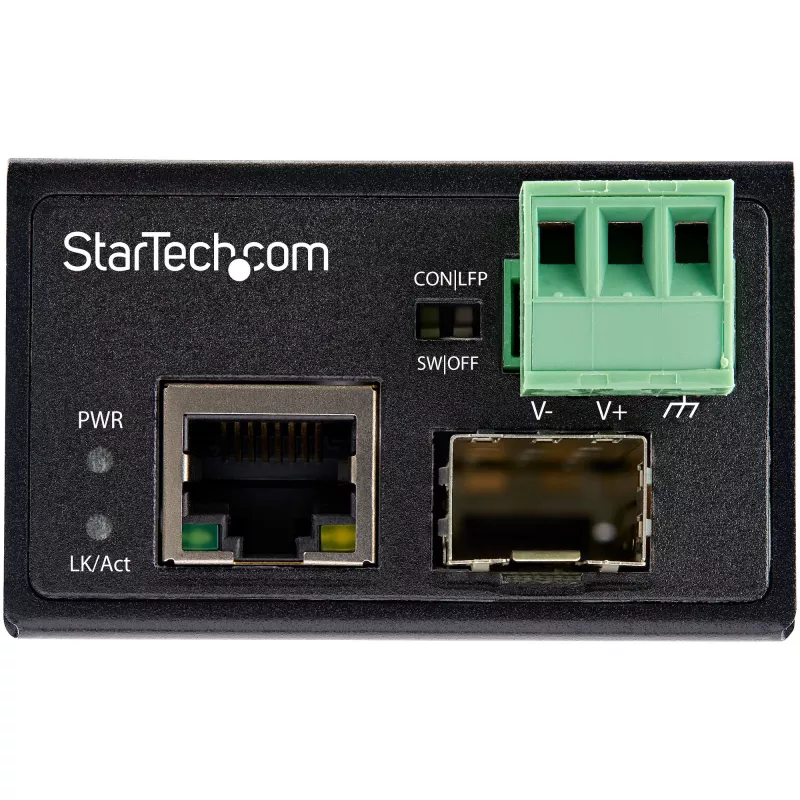

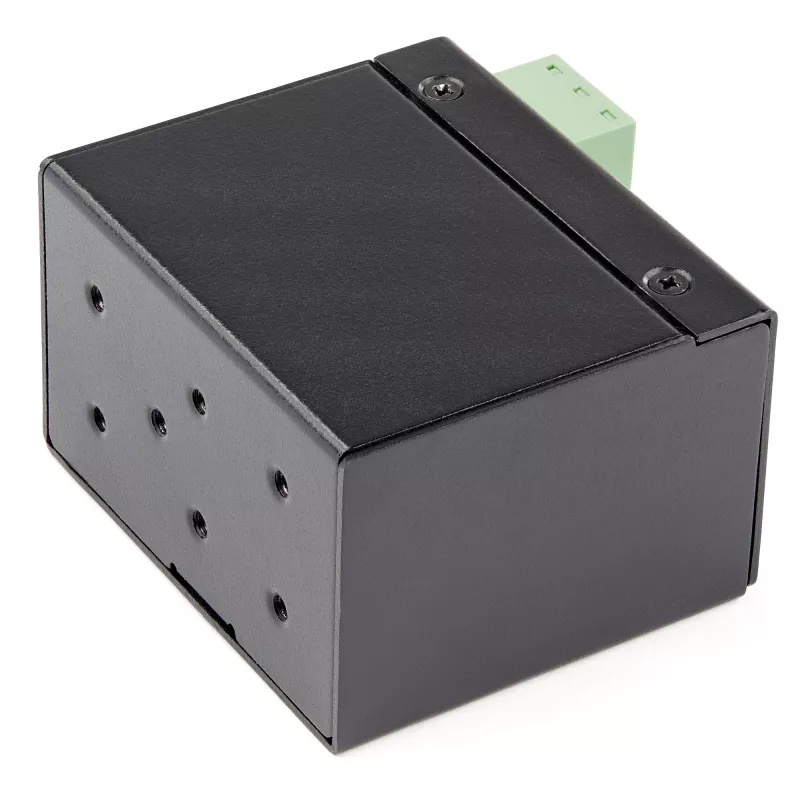

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper tīkls - 12-56V DC - IP-30/ -40 to +75C

"10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing

An industrial media converter that converts fiber to copper at a tīkls endpoint.

A Flexible Solution Covering Different Requirements

This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber kabelis types. Accepts terminal block power or coaxial power connectors ar the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.

For Mission-Critical Applications

Designed ar IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:

Vibration: EN 60068-2-6

Shock: EN 60068-2-27

Free-Fall: EN 60068-2-32

Dual Power Inputs

Accepts terminal block power or coaxial power connectors ar the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial tīkls Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated"

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper tīkls - 12-56V DC - IP-30/ -40 to +75C. Maximum data transfer rate: 100 Mbit/s, Converter input Saskarne: 10Base-T, 100Base-TX, Converter output Saskarne: 100Base-FX. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 500000 h. Produkta krāsa: Melns, Housing material: Aluminium, International Protection (IP) code: IP30. Fiber optic connector: SFP, Savienojuma tehnoloģija: Wired. Input voltage: 12 - 56 V, Power consumption (typical): 1.92 W, Power plug Veids: Type N
